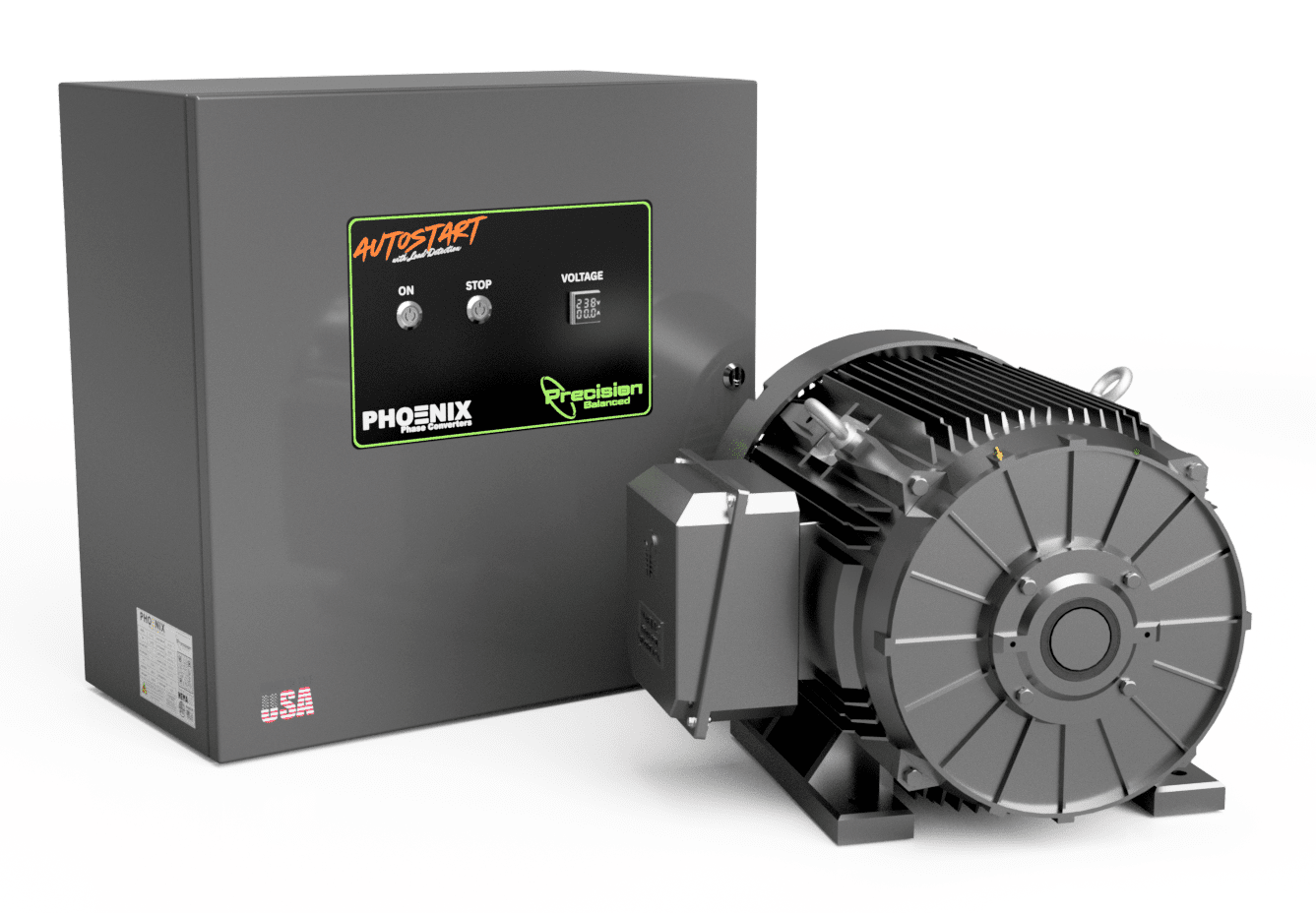

The GP25ASL AutoStart rotary phase converter delivers 25 HP of continuous three-phase power from your single-phase 230V service β and it starts and stops automatically. When your equipment calls for three-phase power, the GP25ASL fires up. When the load drops, it shuts down. No manual switch, no wasted electricity, no babysitting. Built for mid-size workshops and production facilities that demand hands-free single phase to three phase conversion.
| Model | GP25ASL |
| Total Running HP | 25 HP |
| Largest Starting Motor | 10 HP |
| AutoStart | Yes β automatic on/off with load |
| Input Voltage | 230V Single-Phase |
| Output Voltage | 230V Three-Phase |
| Service Size | 25 kVA (100A) |
| Breaker Size | 40β100 |
| Single Phase Wire Size | 4 AWG (under 50 ft) |
| Idler Motor Wire Size | 6 AWG |
| Idler Motor | 317 lbs β 256T NEMA Frame |
| Electrical Panel | 40 lbs β 20" Γ 12" Γ 8" |
AutoStart Series Wiring Diagram β single-phase 230V in, three-phase 230V out with automatic start/stop
π¦ What's Included
- β 25 HP TEFC Idler Motor (continuous duty, cast iron frame)
- β Pre-wired Electrical Control Panel with AutoStart
- β AutoStart Load Sensing System (automatic on/off)
- β AutoLink Soft-Start System (built in)
- β Complete Installation Manual & Wiring Diagrams
- β Lifetime Warranty β motor & panel
Why the GP25ASL AutoStart Phase Converter
The GP25ASL senses three-phase demand and starts automatically. When your equipment shuts off, the converter powers down β saving energy and reducing wear.
Clean, balanced three-phase power from your single-phase supply. Won't damage sensitive equipment or trip breakers under load.
One phase converter powers your entire shop β up to 25 HP of simultaneous three-phase load across all your equipment.
Thermal and magnetic protection safeguards your equipment. AutoLink soft-start system prevents inrush damage on startup.
Continuous duty rated. TEFC motor handles 24/7 operation in demanding environments β dust, heat, and vibration.
AutoStart eliminates idle run time. The converter only draws power when your three-phase equipment is actually running β cutting your electric bill.
IP65 Weatherproof Control Panel
Every panel is rated IP65 β fully sealed against dust and water jets. Install indoors or outdoors with confidence, even in harsh shop environments.
Heavy-Duty TEFC Idler Motor
Totally Enclosed Fan Cooled motor with cast iron frame, precision-balanced rotor, and sealed bearings. Built for decades of continuous industrial service.
ποΈ Common Applications for 25 HP AutoStart Phase Converters
The GP25ASL AutoStart phase converter is ideal for equipment that runs intermittently β it powers up automatically when you turn on your three-phase machine and shuts down when you're done.
GP25ASL Technical Documentation
Complete specs, wiring diagrams, and installation instructions for this AutoStart phase converter
Talk to an engineer β we'll size the right AutoStart phase converter for your exact setup
The GP25ASL is a 25 HP AutoStart rotary phase converter designed and manufactured by Phoenix Phase Converters in Phoenix, Arizona. This single phase to three phase converter provides reliable three-phase 230V power from a standard single-phase 230V service, with the added convenience of automatic start and stop. When your three-phase equipment turns on, the GP25ASL detects the load and starts the idler motor automatically. When the load is removed, it shuts down β eliminating wasted energy and manual switching.
The AutoStart feature makes the GP25ASL ideal for shops where equipment runs intermittently β CNC machines, compressors, pumps, and other three-phase tools that cycle on and off throughout the day. No need to walk to the panel to flip a switch before every use. The GP25ASL handles it automatically, so you can focus on your work.
Not sure whether you need an AutoStart or standard phase converter? Our engineers can help you choose the right configuration based on your equipment, workflow, and facility. Call us at (800) 417-6568 for free sizing assistance.
