Phase Converter vs. VFD: Which Is Right for Your Application?

Phase Converter vs. VFD: Understanding the Key Differences

If you need three-phase power but only have single-phase service, you've probably come across two options: a rotary phase converter and a variable frequency drive (VFD). Both convert single-phase power to run three-phase equipment — but they work very differently, and choosing the wrong one can cost you time, money, and even void equipment warranties.

Here's an honest, expert comparison from Phoenix Phase Converters — with over 50 years in the industry — to help you make the right choice.

How They Work

Rotary Phase Converter

A rotary phase converter uses a spinning generator (called an idler motor) to create a true third phase of power. The output is genuine three-phase electricity — balanced, clean, and virtually identical to utility-supplied three-phase power. Your equipment sees real three-phase power, period.

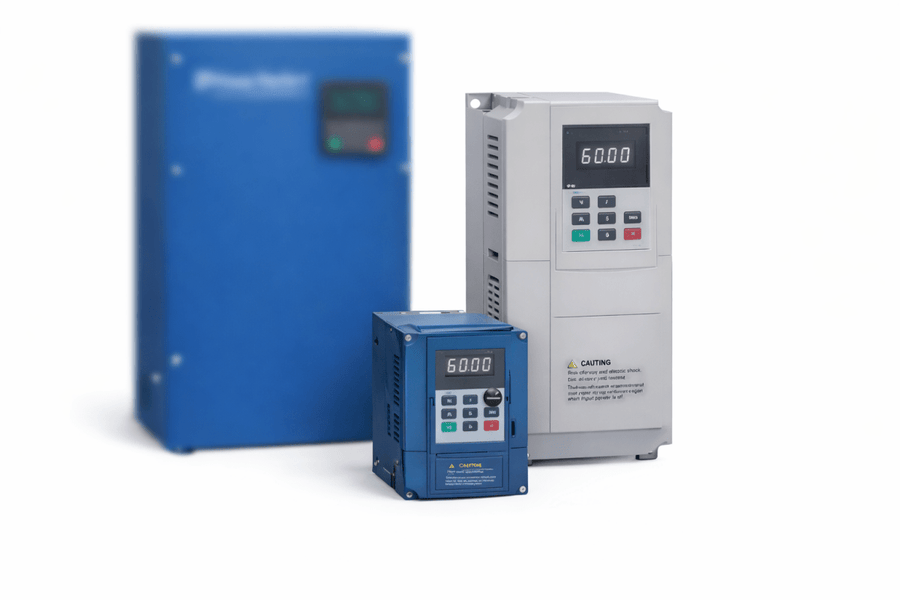

Variable Frequency Drive (VFD)

A VFD converts single-phase AC power to DC, then reconstructs it as simulated three-phase AC at a variable frequency. This allows precise speed control of a single motor. However, the output waveform is not true sine-wave power — it's a pulse-width modulated (PWM) approximation.

When to Use a Rotary Phase Converter

• Multiple machines: One converter powers your entire shop — CNC machines, lathes, compressors, and more, all at once
• HVAC and refrigeration: Compressor manufacturers often require true three-phase power; VFDs can void warranties
• Sensitive electronics: CNC controllers, PLCs, and digital readouts need clean power without harmonic distortion
• Simplicity: Install once, wire your panel, and run everything — no programming required
• Any motor type: Works with induction motors, multi-speed motors, and motor starters

When to Use a VFD

• Single motor, variable speed: When you need precise RPM control on one specific motor
• Fan/pump applications: Where speed reduction saves significant energy
• Space constraints: VFDs are more compact for single-motor applications

VFD Limitations You Should Know

VFDs are excellent tools in the right application, but they have significant limitations that sales literature often glosses over:

• Harmonic distortion: VFDs produce harmonics that can interfere with other equipment on the same circuit — especially CNC machines and sensitive electronics
• Compressor warranty issues: Many HVAC and refrigeration compressor manufacturers (Copeland, Carrier, Trane) explicitly void warranties when a VFD is used instead of true three-phase power
• One motor per drive: Each VFD runs exactly one motor. Five machines? You need five VFDs
• Motor cable length limits: Long cable runs between VFD and motor cause voltage spikes that damage motor windings
• Not compatible with all motors: Some motor types (especially older or specialty motors) don't work well with VFD output
• Programming complexity: VFDs require parameter programming for each application — wrong settings can damage equipment

Cost Comparison

Decision Matrix: Which Do You Need?

The Bottom Line

If you need to run one motor at variable speeds, a VFD may be the right tool. For virtually everything else — especially shops with multiple machines, HVAC systems, or sensitive equipment — a rotary phase converter delivers better power, greater flexibility, and lower long-term cost.
