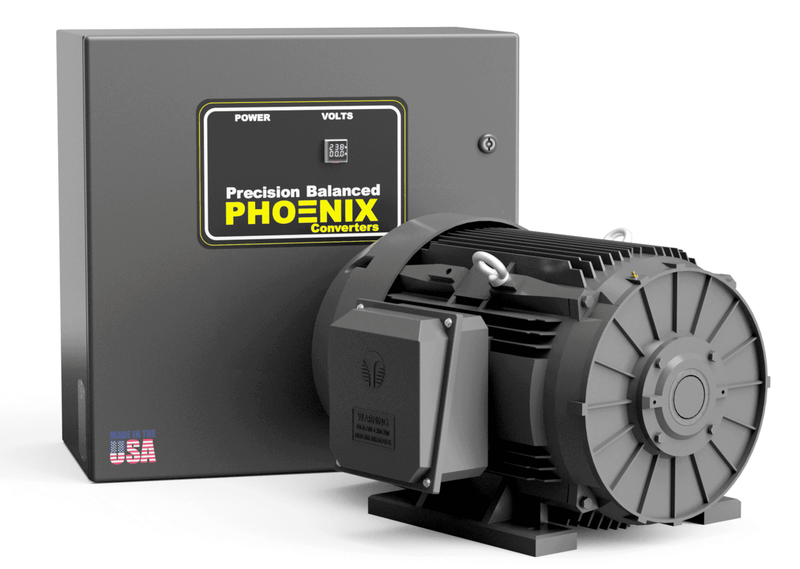

Single Phase 230V to Three Phase 230V - 30 HP Rotary Phase Converter.
Convertidor rotatorio de fase de 30 HP - Convertidor monofásico a trifásico GP30NL
$3,585.61 $3,198.00
GET IT FAST!! 1 to 5 Days. Order in the next to get it between and
hoursminutes
Control Panel
At Phoenix Phase Converters we use the best components that last a lifetime. The GP30NL - 30 HP rotary phase converter is sealed from any outside environment and is made to be used in a metal shop, woodshop, and outdoors. In addition, the phase converter is designed to be utilized in cold or hot weather. An intuitive standard voltage meter display to monitor your generated phase. The rotary phase converter is engineered with a NEMA 4 enclosure to ensure it is durable in a variety of commercial environments.
Generator/Idler
Standard Feature TEFC (Totally Enclosed Fan Cooled) Generator and Cast Iron Frame.Our Highly Reliable Motors: At PPC we use the best components that last a lifetime. The 30 HP rotary phase converter - GP30NL single phase to three phase converter features a totally enclosed fan cooled and castiron frame motor. It is sealed from any outside environment and is made to be used in a metal shop, woodshop, andoutdoors. The phase converter is designed to be utilized in cold or hot weather. Watch the video below to learn more.
More on what makes TEFC different then ODP.
If any component is found to be defective within the warrantyperiod, Phoenix Phase Converters will either repair or replace it (atour discretion) at no cost. Warranty services for the control panelmust be conducted exclusively at a Phoenix Phase Convertersauthorized facility. Click below to read more.
At Phoenix Phase Converters, we strive to ensure your completesatisfaction with our products. If for any reason you need to return a product, please review our return policy belowReturn Eligibility:- Only sealed, unopened packages are eligible for return.- Returns must be initiated within 90 days from the date of purchase. Click below to read more.
| LOAD TYPE | EQUIPMENT TO USE ON BUT NOT LIMITED TO |
|---|---|
| EASY LOAD | 25 HP Drill Press, Milling Machine, Saw Motors. |
| MEDIUM LOAD | 20 HP Mixer, Disc Sander, Band Saw, Meat Grinder, Compactor, Hoist. |
| HARD LOAD | 15 HP Lathe, Wide Belt Sander, Brake, Shear, Hoist, Hydraulic Pump, Pumps, Granite Saw. |
| VERY HARD | 10 HP Air Compressor, Blower, Vacuums, Cryo Chamber. |
| CNC SPINDLE | 15 HP Spindle Motor and all other small motors on the CNC Equipment. |
| RESISTIVE LOAD | 35 AMPS, Ovens, Welders, Battery Chargers, Transmitters. |
| A/C - FREEZERS | 15 HP or 232 Locked Rotor Amps (LRA) |
| General Specifications | Single Phase Specs | Three phase Specs | Options | ||||
|---|---|---|---|---|---|---|---|
| HP | 30 | Voltage Input | 230 VAC | Voltage Output | 230 VAC | Start and StopW/ Built-In Contactor | No, add-on available |
| KW | 21.4 | Motor Load Breaker Minimum Size | 50 | Maximum Output Inductive Load Amps | 80 | Voltmeter Display | YES |
| KVA | 32.02 | Motor Load Breaker Maximum Size | 150 | Maximum Output Resistive Amps | 42 | AutoStart/AutoOff | No, add-on available |
| HZ | 50/60 | Breaker Type | Motor Load | Voltage Balancing | +/- 2% | Wireless Remote ON/OFF | No, add-on available |
| Panel Enclosure | NEMA4 Indoor/Outdoor Hinged | Single Phase Line Input Wire Size | 2 | Minimum Wire Size Idler/Generator | 3 | GPX Energy Monitor Cloud System ON/OFF and Times | No, add-on available |
| Motor | Cast Iron TEFC | Start and Stop W/ Built-In Contactor | No | Largest Spindle Motor Start | 15 | ||
| Frame | 286T | Largest Compressor Motor Start | 12 | ||||
| Idler Weight | 396.9 | Total Combined Horsepower Run | 30 | ||||
| Electrical Panel Weight | 45 lbs | ||||||
| Enclosure Certifications | UL 508A (CSA C22.2No. 14-13.), TUV, CE | ||||||
| Panel Color | Gray White(RAL7035) | ||||||
| Panel Dimensions | 20 x 12 x 10 | ||||||
| Motor Dimensions | 14 x 14 x 22 |
THE MOST ROBUST AND RELIABLE 30 HP PHASE CONVERTER ON THE MARKET
Control Panel
Nema 4 Indoor/Outdoor Rate
At Phoenix Phase Converters we use the best components that last a lifetime. The 30 HP rotary phase converter is sealed from any outside environment and is made to be used in a metal shop, woodshop, and outdoors. In addition, the phase converter is designed to be utilized in cold or hot weather. An intuitive standard voltage meter display to monitor your generated phase. The rotary phase converter is engineered with a NEMA 4 enclosure to ensure it is durable in a variety of commercial environments.
Generator/Idler
Totally Enclosed Fan Cooled
Standard Feature TEFC (Totally Enclosed Fan Cooled) Generator and Cast Iron Frame.
Our Highly Reliable Motors: At Phoenix Phase Converters we use the best components that last a lifetime. The 30 HP rotary phase converter - GP30NL single phase to three phase converter features a totally enclosed fan cooled and cast iron frame motor. It is sealed from any outside environment and is made to be used in a metal shop, woodshop, and outdoors. In addition, the phase converter is designed to be utilized in cold or hot weather. Watch the video below to learn more.
Optional Features
Most Advanced Useful Features
- Wireless Remotes
- Start and Stop Button with built-in Contactor
- Programmable Timer ON/OFF
- Load Detection OFF
- Load Detection Auto Start and OFF
- AutoLink Box to Transformer 460 Volts
- AutoLink Box to Pair to another Phase Converter
- Wifi or Cloud-Based Energy Phase Meter Includes Timer, Cloud-Base ON/OFF, Voltage Meter, KW per hour, and Cost. Starts at 30 HP and above sizes.
Stock in 12 Warehouses
We have 12 warehouses across the USA, so you can get it FAST! Phoenix Phase Converters can get your phase converter from one of our warehouses to your door, residential or business address as fast as Next Day in most cases!
Our Customers Come Back
We guarantee here at Phoenix Phase Converters, you will always talk to a highly experienced sales and tech support customer care team. We are always available, and can answer any questions for you any time of the day or week.
Highest Standards of Quality
Two generations of hands-on experience. The 30 HP rotary phase converter - GP30NL features oversized components, cast iron frames, and totally enclosed fan cooled idler/generators. Built from years of customer real-world experiences, to last a lifetime with a maintenance-free rotary phase converter.
Section
Drop element here
Phase Converter will Automatically Start when a load is detected, Factory Settings is set to 20 minutes after to shut down by itself when the load is gone, this works great for CNC machines, Air Compressor, A/C units, irrigation, and pumps, ect.
GPX Series
Cloud Based Controls via WIFI
GPX Series will allow for you to have total control of the phase converter with built in timers to turn the phase converter on and off with a 7 day scheduling, and 24 hour time setting. Also with a built-in energy monitor for the converter and everything connected to it. You can even control and monitor it from any device connected to the internet from anywhere in the world.
Single Phase 230 Volts input with 230 volts and 460 volts output, some equipment are only set to run on 460 volts 3 phase, while other machines can run on 230 volts 3 phase. this will allow you to use both even at the same time. 208 volt output also available. Ask about our LinkBox.
Sizing Guide Call Our Team for help Sizing 800-417-6568
Click here to download the Data Sheets
| Model | Easy | Medium | Hard | Very Hard | Resistive Amps | KVA | CNC Spindle Motor | Price |
|---|---|---|---|---|---|---|---|---|
| GP3 | 2.5 | 2 | 1.5 | 1 | 4 | 1.6 | 1.5 | $624.36 |
| GP5 | 3 | 3 | 2 | 1.5 | 7 | 2.9 | 2.5 | 789.51 |
| GP7 | 7 | 5 | 3 | 2.5 | 11 | 4.5 | 3.5 | 1085.00 |
| GP10 | 8 | 5 | 5 | 3 | 15 | 6 | 5 | 1599.18 |
| GP15 | 10 | 8 | 7.5 | 5 | 20 | 8 | 7.5 | 2057.23 |
| GP20 | 15 | 12 | 10 | 7.5 | 25 | 11 | 10 | 2647.18 |
| GP25 | 20 | 15 | 12 | 10 | 30 | 13 | 10 | 2963.43 |
| GP30 | 25 | 20 | 15 | 10 | 37 | 15 | 15 | 3481.17 |
| GP40 | 30 | 25 | 20 | 15 | 50 | 21 | 20 | 4210.30 |
| GP50 | 40 | 30 | 25 | 20 | 61 | 25 | 25 | 5485.79 |
| GP60 | 50 | 40 | 30 | 25 | 72 | 30 | 30 | 6883.34 |
| GP75 | 60 | 50 | 40 | 30 | 100 | 29.6 | 35 | 8074.28 |
| GP100 | 75 | 60 | 50 | 40 | 122 | 37.3 | 50 | 10465.37 |
| GP120 | 100 | 75 | 60 | 50 | 148 | 60 | 60 | 13254.34 |
| GP150 | 125 | 100 | 70 | 60 | 162 | 72 | 70 | 16140.23 |
Built with quality and precision like no other.
At Phoenix Phase Converters we use custom made components that last a lifetime. The 30 HP rotary phase converter - GP30NL single phase to three phase converter with an oversized distribution block (the Start and Stop button with built-in contactor is optional).
Protect your investment
All Phoenix Phase Converter come with a NEMA 4 IP66 Enclosure, keep water, dust, oil out, works perfect for outdoors or indoors, especially great for wood working, metal working shops, or any dirty environments
Standard Features
See why TEFC vs ODP is better, the choice is easy.
