| General Specifications | Single Phase Specs | Three phase Specs | Options | ||||
|---|---|---|---|---|---|---|---|
| HP | 30 | Voltage Input | 230 VAC | Voltage Output | 230 VAC | Start and StopW/ Built-In Contactor | YES |
| KW | 21.4 | Motor Load Breaker Minimum Size | 50 | Maximum Output Inductive Load Amps | 80 | Voltmeter Display | YES |
| KVA | 32.02 | Motor Load Breaker Maximum Size | 150 | Maximum Output Resistive Amps | 42 | AutoStart/AutoOff | No, add-on available |
| HZ | 50/60 | Breaker Type | Motor Load | Voltage Balancing | +/- 2% | Wireless Remote ON/OFF | No, add-on available |
| Panel Enclosure | NEMA4 Indoor/Outdoor Hinged | Single Phase Line Input Wire Size | 2 | Minimum Wire Size Idler/Generator | 3 | GPX Energy Monitor Cloud System ON/OFF and Times | No, add-on available |
| Motor | Cast Iron TEFC | Start and Stop W/ Built-In Contactor | No | Largest Spindle Motor Start | 15 | ||
| Frame | 286T | Largest Compressor Motor Start | 12 | ||||
| Idler Weight | 396.9 | Total Combined Horsepower Run | 30 | ||||
| Electrical Panel Weight | 45 lbs | ||||||
| Enclosure Certifications | UL 508A (CSA C22.2No. 14-13.), TUV, CE | ||||||
| Panel Color | Gray White(RAL7035) | ||||||
| Panel Dimensions | 20 x 12 x 10 | ||||||
| Motor Dimensions | 14 x 14 x 22 |
THE MOST ROBUST AND RELIABLE PHASE CONVERTER ON THE MARKET
The "Patented AutoStart Phase Converter" is an innovative and highly efficient device that has been revolutionizing the field of power conversion. With its cutting-edge technology and unique design, this phase converter provides seamless and reliable performance for a wide range of applications.One of the standout features of this remarkable phase converter is its patented design, which sets it apart from traditional converters on the market. The team of experts behind this invention has spent countless hours researching and developing the perfect solution for converting single-phase power to three-phase power. The result is a truly groundbreaking device that simplifies the process of power conversion, making it more accessible and convenient for users across various industries.The "Patented Design AutoStart Phase Converter" boasts a user-friendly interface that ensures effortless operation. Equipped with advanced automation capabilities, this phase converter can automatically start the conversion process as soon as it detects any change in power supply. This not only saves time and effort but also adds to the overall efficiency of the device. Furthermore, this phase converter has been meticulously engineered to ensure optimum performance and reliability. Its robust construction guarantees durability and longevity, making it a worthwhile investment for any business or individual in need of a reliable power conversion solution.In addition to its exceptional performance, the "Patented Design AutoStart Phase Converter" has also been designed with safety in mind. Built-in safety features such as surge protection and overheating prevention mechanisms provide peace of mind, knowing that this device will protect both your equipment and your workforce.Whether you are operating a small workshop or a large-scale industrial facility, the "Patented Design AutoStart Phase Converter" is the perfect solution to meet your power conversion needs. Its versatility and adaptability make it suitable for a wide range of applications, including but not limited to woodworking, metal fabrication, manufacturing, and agriculture.In conclusion, the "Patented AutoStart Phase Converter" is a game-changer in the realm of power conversion. From its patented design and advanced automation capabilities to its undeniable performance and utmost safety, this device has it all. Invest in this innovative phase converter today and experience the power of seamless and efficient power conversion like never before.
Watch it in action in the video below.

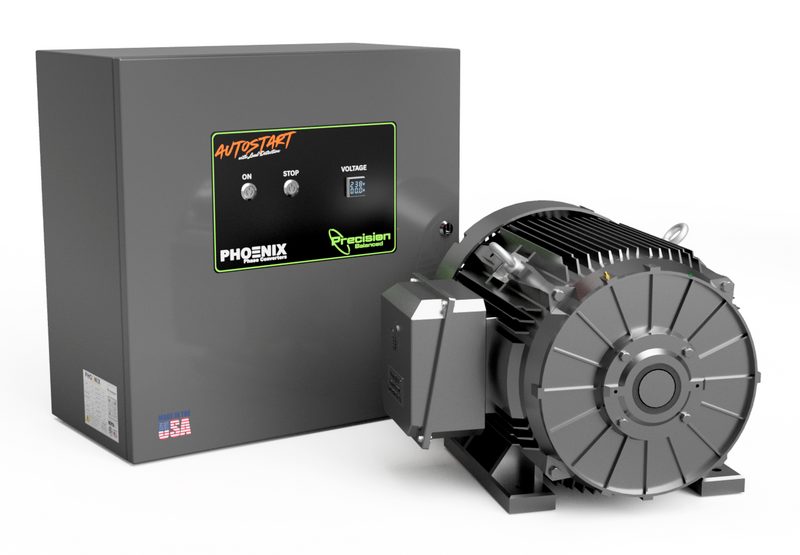

AutoStart Phase Converter, that turns ON and OFF with your equipment - US PATENTED
Control Panel
2023 Model, new and approved
Introducing the Phoenix Phase Converters Control panel, crafted for the ultimate precision and efficiency in phase conversion. Our dedicated team of engineers and designers are proud to present this state-of-the-art control panel, meticulously designed for unparalleled performance.At Phoenix Phase Converters, we believe that cleanliness goes hand in hand with quality. As self-professed neat freaks, we understand the importance of maintaining a tidy and organized workspace. That's why we have gone above and beyond to ensure that our control panel is not only the best in terms of functionality but also the cleanest in the industry.When it comes to phase conversion, precision is key. Our panel is engineered to deliver seamless and reliable power distribution, allowing for smooth operation of various machinery and equipment. With advanced technology and top-of-the-line components, we guarantee optimal performance that surpasses all expectations.But what truly sets our control panel apart is its unmatched cleanliness. We take pride in offering a product that not only functions flawlessly but also looks and feels pristine. Every inch of our control panel is meticulously designed and maintained to provide a dust-free and clutter-free environment. Say goodbye to messy and disorganized wiring. With our innovative design, all cables are neatly positioned and secured, ensuring easy accessibility and hassle-free maintenance.Safety is our utmost priority. The Phoenix Phase Converters Control panel is built with top-grade materials and adheres to strict safety standards. We understand the significance of complying with industry regulations, and our panel exceeds all required specifications. Rest assured that our control panel will not only meet but also exceed your expectations in terms of safety and reliability.In conclusion, if you are seeking a phase converter control panel that is not only the best in terms of performance but also the cleanest in the market, look no further than the Phoenix Phase Converters Control panel. With its unmatched precision, advanced technology, and exceptional cleanliness, it is the ultimate solution for all your phase conversion needs. Experience the difference with Phoenix Phase Converters and take your operations to new heights.
Generator/Idler
Nema 4 Indoor/Outdoor Rate
When it comes to finding the best components for any outdoor setting, it's important to consider their durability and versatility. These components should be able to withstand various environments such as wood shops, metal shops, and even the great outdoors. That's where the importance of NEMA 4 enclosure comes into play. NEMA 4 enclosures are specifically designed to protect electrical components from the elements. Whether it's extreme hot or cold temperatures, these enclosures ensure that the components inside remain safe and functional. This makes them the ideal choice for any outdoor application, where exposure to harsh weather conditions is unavoidable. Furthermore, these components are not only rated for outdoor use, but they also excel in other environments such as wood shops and metal shops. This versatility guarantees that they can be utilized in a wide range of settings, allowing for seamless integration into any project or equipment. In addition to their impressive durability, these components are also known for their top-notch performance. With their robust construction and reliable design, they are capable of withstanding the demands of any environment. Whether it's heavy-duty use or long-term exposure to challenging conditions, these components are built to last. So, if you're looking for the best components for your outdoor, wood shop, or metal shop needs, make sure to consider those that are rated for outdoor use and come with a NEMA 4 enclosure. Not only will they provide the protection and reliability required, but they will also offer the peace of mind that your equipment is equipped with the best components available.
Optional Features
Most Advanced Useful Features
Introducing the all-new, revolutionary AutoStart Phase Converter Module, equipped with the latest advancements in technology, ensuring enhanced performance and unparalleled reliability. With its improved patented design, this module is not only dependable but also offers adjustable settings to meet your specific requirements effortlessly.One of the standout features of this cutting-edge module is its upgraded enclosure. Crafted with precision and durability in mind, the better enclosure guarantees the utmost protection for the internal components, ensuring years of trouble-free operation. Additionally, the new window display provides a crystal-clear view of the timing sequence, allowing for easy monitoring and control.Experience unmatched efficiency and convenience with the AutoStart Phase Converter Module. Whether for industrial or residential use, this innovative solution is designed to deliver optimal performance and cater to a wide range of applications. Say goodbye to compatibility issues and unreliable power supply as this module effortlessly converts single-phase power to three-phase power, granting you the freedom and flexibility to power multiple machines and equipment seamlessly.Not only does the AutoStart Phase Converter Module offer exceptional functionality, but it also boasts a sleek and modern design. Its compact size and streamlined aesthetic make it an ideal choice for any setting, whether it be a commercial facility, workshop, or residential area. The module seamlessly integrates into your existing electrical system, saving space and reducing installation complexity.Reliability, versatility, and efficiency – the AutoStart Phase Converter Module has it all. Invest in this advanced technology and upgrade your power conversion setup today. Trust in its patented advancements and adjustable settings to provide you with the perfect balance of performance and convenience. Experience peace of mind knowing that your power supply needs are met seamlessly, allowing you to focus on what truly matters – achieving your goals without any interruptions or setbacks.Don't settle for subpar solutions when it comes to power conversion. Choose the AutoStart Phase Converter Module and experience the difference it can make in your daily operations. Join countless satisfied customers who have already made the switch and unlock the full potential of your electrical system with this game-changing innovation. Trust in our commitment to quality and excellence as we continue to push the boundaries of technological advancements in the power conversion industry.
Stock in 12 Warehouses
We have 12 warehouses across the USA, so you can get it FAST! Phoenix Phase Converters can get your phase converter from one of our warehouses to your door, residential or business address as fast as Next Day in most cases!
Our Customers Come Back
We guarantee here at Phoenix Phase Converters, you will always talk to a highly experience sales and tech support customer care, we are always available, and can answer any questions for you any time of the day or week.
Highest Standards of Quality
Two generations of hands-on experience. The 20 HP rotary phase converter - GP20PL features oversized components, cast iron frames, and totally enclosed fan cooled idler/generators. Built from years of customer real-world experiences, to last a lifetime of a maintenance free phase converter.
Phase Converter will Automatically Start when a load is detected, Factory Settings is set to 20 minutes after to shut down by itself when the load is gone, this works great for CNC machines, Air Compressor, A/C units, irrigation, and pumps, ect.
GPX Series
Cloud Based Controls via WIFI
GPX Series will allow for you to have total control of the phase converter with built in timers to turn the phase converter on and off with a 7 day scheduling, and 24 hour time setting. Also with a built-in energy monitor for the converter and everything connected to it. You can even control and monitor it from any device connected to the internet from anywhere in the world.
Single Phase 230 Volts input with 230 volts and 460 volts output, some equipment are only set to run on 460 volts 3 phase, while other machines can run on 230 volts 3 phase. this will allow you to use both even at the same time. 208 volt output also available. Ask about our LinkBox.
Sizing Guide Call Our Team for Help Sizing 800-417-6568
Click here to download the Data Sheets
| Model | Easy | Medium | Hard | Very Hard | Resistive Amps | KVA | CNC Spindle Motor | Price |
|---|---|---|---|---|---|---|---|---|
| GP3 | 2.5 | 2 | 1.5 | 1 | 4 | 1.6 | 1.5 | $624.36 |
| GP5 | 3 | 3 | 2 | 1.5 | 7 | 2.9 | 2.5 | 789.51 |
| GP7 | 7 | 5 | 3 | 2.5 | 11 | 4.5 | 3.5 | 1085.00 |
| GP10 | 8 | 5 | 5 | 3 | 15 | 6 | 5 | 1599.18 |
| GP15 | 10 | 8 | 7.5 | 5 | 20 | 8 | 7.5 | 2057.23 |
| GP20 | 15 | 12 | 10 | 7.5 | 25 | 11 | 10 | 2647.18 |
| GP25 | 20 | 15 | 12 | 10 | 30 | 13 | 10 | 2963.43 |
| GP30 | 25 | 20 | 15 | 10 | 37 | 15 | 15 | 3481.17 |
| GP40 | 30 | 25 | 20 | 15 | 50 | 21 | 20 | 4210.30 |
| GP50 | 40 | 30 | 25 | 20 | 61 | 25 | 25 | 5485.79 |
| GP60 | 50 | 40 | 30 | 25 | 72 | 30 | 30 | 6883.34 |
| GP75 | 60 | 50 | 40 | 30 | 100 | 29.6 | 35 | 8074.28 |
| GP100 | 75 | 60 | 50 | 40 | 122 | 37.3 | 50 | 10465.37 |
| GP120 | 100 | 75 | 60 | 50 | 148 | 60 | 60 | 13254.34 |
| GP150 | 125 | 100 | 70 | 60 | 162 | 72 | 70 | 16140.23 |
Built with quality and precision like no other.
At Phoenix Phase Converters we use custom made components that last a lifetime. The 20 HP rotary phase converter - GP30ASL single phase to three phase converter with an oversized distribution block (the Start and Stop button with built-in contactor is optional).
Protect your investment
All Phoenix Phase Converter come with a NEMA 4 IP66 Enclosure, keep water, dust, oil out, works perfect for outdoors or indoors, especially great for wood working, metal working shops, or any dirty environments
Standard Features
See why TEFC vs ODP is better, the choice is easy.
