| General Specifications | Single Phase Specs | Three phase Specs | Options | ||||
|---|---|---|---|---|---|---|---|
| HP | 40 | Voltage Input | 230 VAC | Voltage Output | 230 VAC | Start and StopW/ Built-In Contactor | YES |
| KW | 29.8 | Motor Load Breaker Minimum Size | 80 | Maximum Output Inductive Load Amps | 104 | Voltmeter Display | YES |
| KVA | 43.37 | Motor Load Breaker Maximum Size | 200 | Maximum Output Resistive Amps | 56 | AutoStart/AutoOff | No, add-on available |
| HZ | 50/60 | Breaker Type | Motor Load | Voltage Balancing | +/- 2% | Wireless Remote ON/OFF | WIFI |
| Panel Enclosure | NEMA4 Indoor/Outdoor Hinged | Single Phase Line Input Wire Size | 1/0 | Minimum Wire Size Idler/Generator | 3 | GPX Energy Monitor Cloud System ON/OFF and Times | YES |
| Motor | Cast Iron TEFC | Start and Stop W/ Built-In Contactor | No | Largest Spindle Motor Start | 20 | ||
| Frame | 326T | Largest Compressor Motor Start | 16 | ||||
| Idler Weight | 539.1 | Total Combined Horsepower Run | 40 | ||||
| Electrical Panel Weight | 51 lbs | ||||||
| Enclosure Certifications | UL 508A (CSA C22.2No. 14-13.), TUV, CE | ||||||
| Panel Color | Gray White(RAL7035) | ||||||
| Panel Dimensions | 20 x 12 x 10 | ||||||
| Motor Dimensions | 15 x 15 x 24 |
THE MOST ROBUST AND RELIABLE PHASE CONVERTER ON THE MARKET
Control Panel
Nema 4 Indoor/Outdoor Rate
As you may already know, when an electrical appliance is damaged, it doesn't simply stop working. In fact, it often tries to compensate for its operational capacity by increasing the amount of energy it uses. This can lead to a variety of issues, such as inefficiency and wasted energy. The problem with this is that there is often no visible difference in the equipments performance. It may take months before the issue is identified, which can result in prolonged inefficiency and unnecessary energy consumption. This not only impacts your utility bills but also the overall performance of your equipment. That's where our product, the GPX power monitoring system, comes into play. By immediately detecting any increase in energy consumption, this advanced technology will notify you of the issue at hand. This proactive approach allows you to take necessary actions to address the problem before it escalates.By receiving immediate notifications, you can save both time and money. Instead of waiting months to identify an issue and incurring additional expenses on repairs or replacement of equipment, you can address the problem early on. This not only helps save on costly repairs but also ensures the optimal functioning of your equipment. We understand how busy life can get and how easily these issues can go unnoticed. That's why we developed the GPX power monitoring system - to provide you with peace of mind and a proactive approach to managing your electrical Equipment .So, why wait for a problem to escalate? Invest in our GPX power monitoring system today and start saving on expenses, while ensuring the efficiency of your equipment.
Generator/Idler
Totally Enclosed Fan Cooled
One of the incredible features of this converter is its power monitoring capability. With this innovative built-in feature, you will have real-time access to monitor and track the power usage of your phase converter remotely. This can be incredibly useful for managing your energy consumption and optimizing the performance of your equipment. Imagine the convenience of being able to keep an eye on your power usage from anywhere, at any time!By adding the Connect Phoenix Phase Converter to your Wi-Fi network, you will have the convenience of accessing and controlling your phase converter from anywhere within your Wi-Fi range. No longer will you have to physically go to the converter to make any adjustments or changes. Instead, you can simply use your smartphone or any Wi-Fi enabled device to do so. This level of convenience is revolutionary and will undoubtedly simplify your workflow.But that's not all. It's an incredible level of convenience and automation that can greatly simplify your daily routine.In summary, the Wi-Fi Operated Connect Phoenix Phase Converter is a cutting-edge product that brings convenience, efficiency, and control to your phase converter setup. By eliminating the need for a HUB and providing power monitoring capabilities, this device ensures a seamless and optimized operation. 365 days of data storage The measurements from Shelly 3EM are stored in a free cloud for 365 days.
Optional Features
Most Advanced Useful Features
- Wireless Remotes
- Without Start and Stop Button with built-in Contactor
- Programmable Timer ON/OFF
- Load Detection OFF
- Load Detection Auto Start and OFF
- AutoLink Box to Transformer 460 Volts
- AutoLink Box to Pair to another Phase Converter
- Wifi or Cloud-Based Energy Phase Meter Includes Timer, Cloud-Base ON/OFF, Voltage Meter, KW per hour, and Cost. Starts at 40 HP and above sizes.
Stock in 12 Warehouses
We have 12 warehouses across the USA, so you can get it FAST! Phoenix Phase Converters can get your phase converter from one of our warehouses to your door, residential or business address as fast as Next Day in most cases!
Our Customers Come Back
We guarantee here at Phoenix Phase Converters, you will always talk to a highly experience sales and tech support customer care, we are always available, and can answer any questions for you any time of the day or week.
Highest Standards - Quality

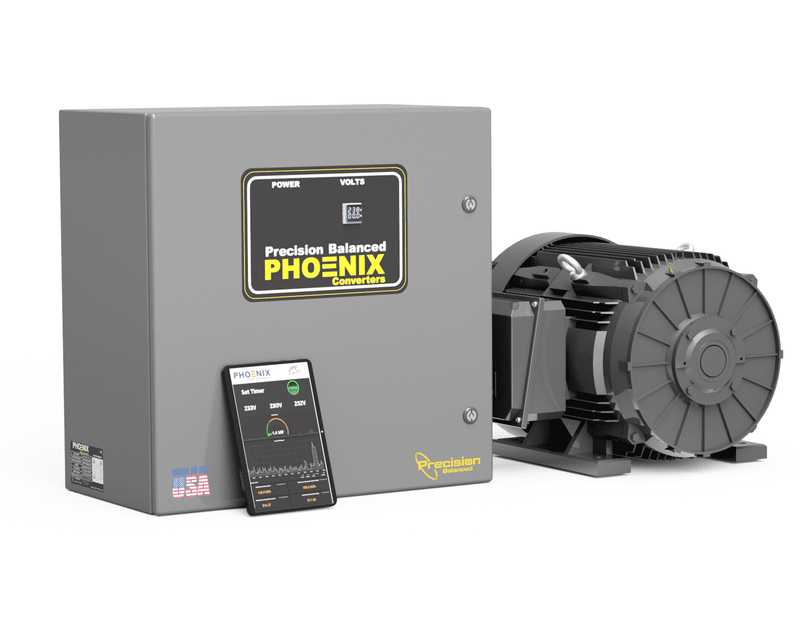

Two generations of hands-on experience. The 40 HP rotary phase converter - GP40PL features oversized components, cast iron frames, and totally enclosed fan cooled idler/generators. Built from years of customer real-world experiences, to last a lifetime of a maintenance free phase converter.
Phase Converter will Automatically Start when a load is detected, Factory Settings is set to 20 minutes after to shut down by itself when the load is gone, this works great for CNC machines, Air Compressor, A/C units, irrigation, and pumps, ect.
GPX Series
Cloud Based Controls via WIFI
GPX Series will allow for you to have total control of the phase converter with built in timers to turn the phase converter on and off with a 7 day scheduling, and 24 hour time setting. Also with a built-in energy monitor for the converter and everything connected to it. You can even control and monitor it from any device connected to the internet from anywhere in the world.
Single Phase 230 Volts input with 230 volts and 460 volts output, some equipment are only set to run on 460 volts 3 phase, while other machines can run on 230 volts 3 phase. this will allow you to use both even at the same time. 208 volt output also available. Ask about our LinkBox.
Sizing Guide Call Our Team for help Sizing 800-417-6568
Click here to download the DataSheets
| Model | Easy | Medium | Hard | Very Hard | Resistive Amps | KVA | CNC Spindle Motor | Price |
|---|---|---|---|---|---|---|---|---|
| GP3 | 2.5 | 2 | 1.5 | 1 | 4 | 1.6 | 1.5 | $624.36 |
| GP5 | 3 | 3 | 2 | 1.5 | 7 | 2.9 | 2.5 | 789.51 |
| GP7 | 7 | 5 | 3 | 2.5 | 11 | 4.5 | 3.5 | 1085.00 |
| GP10 | 8 | 5 | 5 | 3 | 15 | 6 | 5 | 1599.18 |
| GP15 | 10 | 8 | 7.5 | 5 | 20 | 8 | 7.5 | 2057.23 |
| GP20 | 15 | 12 | 10 | 7.5 | 25 | 11 | 10 | 2647.18 |
| GP25 | 20 | 15 | 12 | 10 | 30 | 13 | 10 | 2963.43 |
| GP30 | 25 | 20 | 15 | 10 | 37 | 15 | 15 | 3481.17 |
| GP40 | 30 | 25 | 20 | 15 | 50 | 21 | 20 | 4210.30 |
| GP50 | 40 | 30 | 25 | 20 | 61 | 25 | 25 | 5485.79 |
| GP60 | 50 | 40 | 30 | 25 | 72 | 30 | 30 | 6883.34 |
| GP75 | 60 | 50 | 40 | 30 | 100 | 29.6 | 35 | 8074.28 |
| GP100 | 75 | 60 | 50 | 40 | 122 | 37.3 | 50 | 10465.37 |
| GP120 | 100 | 75 | 60 | 50 | 148 | 60 | 60 | 13254.34 |
| GP150 | 125 | 100 | 70 | 60 | 162 | 72 | 70 | 16140.23 |
Phoenix Phase Converters uses top-notch enclosures we use in our products at Phoenix Phase Converters. Unlike most of our competitors, we offer the TEFC (totally enclosed fan cooled) enclosure. This type of enclosure provides ultimate protection against dirt, metal chips, dust, moisture, and other elements that can damage the equipment.It is worth noting that the roll metal and open drip proof enclosures, which are more commonly used due to their lower manufacturing cost, don't offer the same level of protection as TEFC. At Phoenix Phase Converters, we believe in offering nothing but the best to our customers. Therefore, we use NEMA 4 enclosures for our electrical panels and TEFC enclosures for our generators.By choosing our products, you can be assured of the highest quality and reliability, as we prioritize the safety and longevity of our equipment.
Built with quality and precision like no other.
At Phoenix Phase Converters we use custom made components that last a lifetime. The 40 HP rotary phase converter - GP40PL single phase to three phase converter with an oversized distribution block (the Start and Stop button with built-in contactor is optional).
Protect your investment
All Phoenix Phase Converter come with a NEMA 4 IP66 Enclosure, keep water, dust, oil out, works perfect for outdoors or indoors, especially great for wood working, metal working shops, or any dirty environments
Standard Features
See why TEFC vs ODP is better, the choice is easy.
