⚡ Electrical Specifications
| Specification | Value |
|---|---|
| Model | GP30PLT |
| Service Size | 50 KVA (200A) |
| Breaker Size | 60 MIN - 150 MAX |
| Single Phase Wire Size | 2 AWG (under 50 feet) |
| Idler Motor Wire Size | 3 AWG |
| Largest Starting Motor | 15 HP |
| Transformer Size | 15 KVA |
| Transformer Voltage Output | 460V |
| Total Running HP | 30 HP |
| Idler Motor Weight and Size | 426 lbs, 12" x 12" x 20" |
| Electrical Panel Weight and Size | 51 lbs, 20" x 12" x 8" |
| Download Datasheet and Manual | 📄 Datasheet | 📖 Manual |

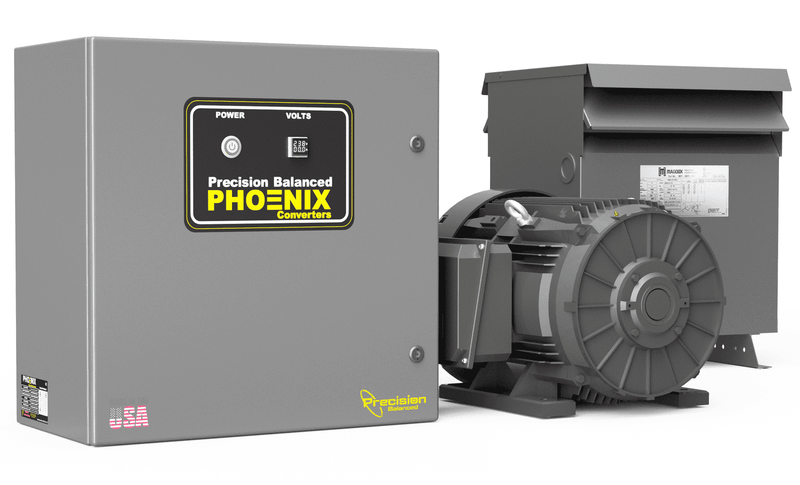

Single Phase 230V to Three Phase 230V - 30 HP Rotary Phase Converter.
30 HP 3 Phase Converter
