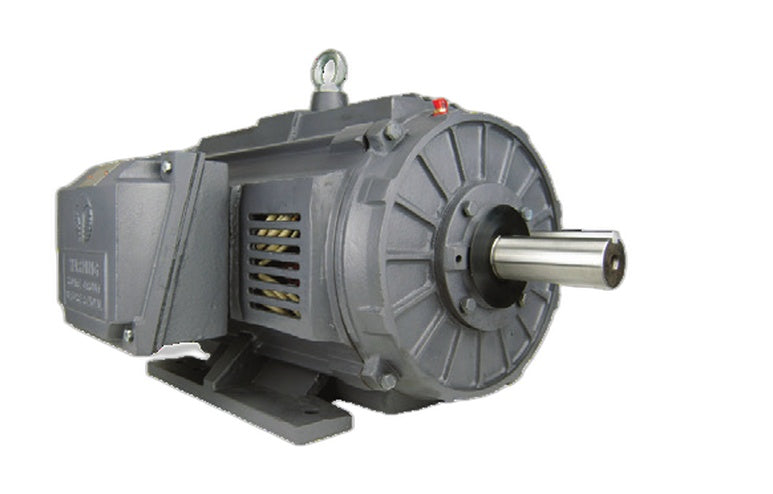

TechTop Phase Converter Idler Motor – 5HP
Purpose-built cast iron idler motor for rotary phase converter duty. Optimized for continuous unloaded operation, providing the balanced three-phase power your equipment needs.
| Horsepower | 5 HP |
|---|---|
| Speed | 1800 RPM (4-Pole) |
| Frame | NEMA 184T |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Construction | Cast Iron Frame & End Brackets |
| Voltage Options | 3-Lead 230V / 12-Lead 230/460V |
| Insulation | Class F |
| Service Factor | 1.15 |
| Certifications | CSA / UL Listed |
| Warranty | 24 Months |
3-Lead 230V: Single voltage winding, pre-wired for 230V phase converter use.
12-Lead 230/460V: Dual voltage reconnectable winding — 230V or 460V configurable.
Compatible with all Phoenix Phase Converter rotary phase converter units.
