ODP vs. TEFC Motor Enclosures — What Phase Converter Should You Choose?
Phoenix Phase Converters are available in two motor enclosure types: ODP (Open Drip-Proof) and TEFC (Totally Enclosed Fan-Cooled). Choosing the right one matters for long-term reliability in your environment.

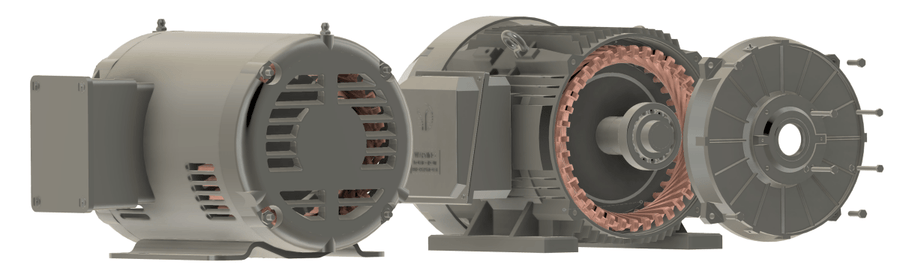

ODP — Open Drip-Proof
ODP motors have ventilation openings that allow air to flow through the windings for cooling. They are the standard enclosure for most indoor industrial environments.
- Best for: Clean, dry indoor environments — machine shops, clean manufacturing, tool rooms
- Cooling: Excellent airflow through windings — runs cooler under continuous load
- Not for: Dusty, dirty, wet, or outdoor environments
- Cost: Standard — no premium over base price
TEFC — Totally Enclosed Fan-Cooled
TEFC motors are sealed — no ventilation openings. An external fan on the rear of the motor blows air over the outside of the frame to dissipate heat. Contaminants cannot enter the motor windings.
- Best for: Dusty shops (woodworking, concrete, grain, farm), wet environments, outdoor installations, food processing
- Cooling: Slightly less efficient than ODP in clean environments, but adequate for rated duty
- Not for: Nothing — TEFC works in all environments where ODP works, plus harsh ones
- Cost: Small premium over ODP
NEMA 4 Enclosure — For the Most Demanding Environments
For washdown environments, outdoor installation, or extremely heavy dust (grain elevators, concrete plants), specify a NEMA 4 enclosure when ordering. NEMA 4 is a steel enclosure rated for hose-directed water — it protects the capacitor panel, contactors, and controls, not just the motor.
Quick Selection Guide
| Environment | Recommended Enclosure |
|---|---|
| Clean, dry machine shop | ODP |
| Woodworking, cabinet shop | TEFC or NEMA 4 |
| Concrete, quarry, aggregate | TEFC + NEMA 4 |
| Farm, grain elevator | TEFC + NEMA 4 |
| Food processing, washdown | TEFC + NEMA 4 |
| Outdoor installation | TEFC + NEMA 4 |
Not sure which enclosure fits your shop? Call (800) 417-6568 and describe your environment — we will recommend the right option.
Ready to get powered up?
Free sizing help. Made in Phoenix, AZ. Lifetime warranty.
Shop Phase ConvertersRelated Articles
Motor Enclosures — FAQ
Can I use a TEFC converter in a clean machine shop?
Yes — TEFC works in all environments. It is slightly more expensive than ODP and runs slightly warmer in clean environments (because external air cooling is less efficient than through-winding airflow), but it is perfectly suitable for clean shops. Many customers choose TEFC for peace of mind.
What is a NEMA 4 enclosure versus NEMA 4X?
NEMA 4 is rated for indoor/outdoor use, hose-directed water, and dust. NEMA 4X adds corrosion resistance — used in food processing, chemical environments, or coastal installations with salt air. For most farm and shop applications, NEMA 4 is sufficient.
Does the motor enclosure type affect converter performance?
No — ODP and TEFC motors deliver identical three-phase output quality. Enclosure type only affects environmental protection and heat dissipation. Performance is the same.
Can I convert an ODP unit to TEFC?
Not easily — the idler motor itself must be replaced. If you need to upgrade enclosure type for a changing environment, contact us. In most cases it is more economical to purchase the correct enclosure upfront.
