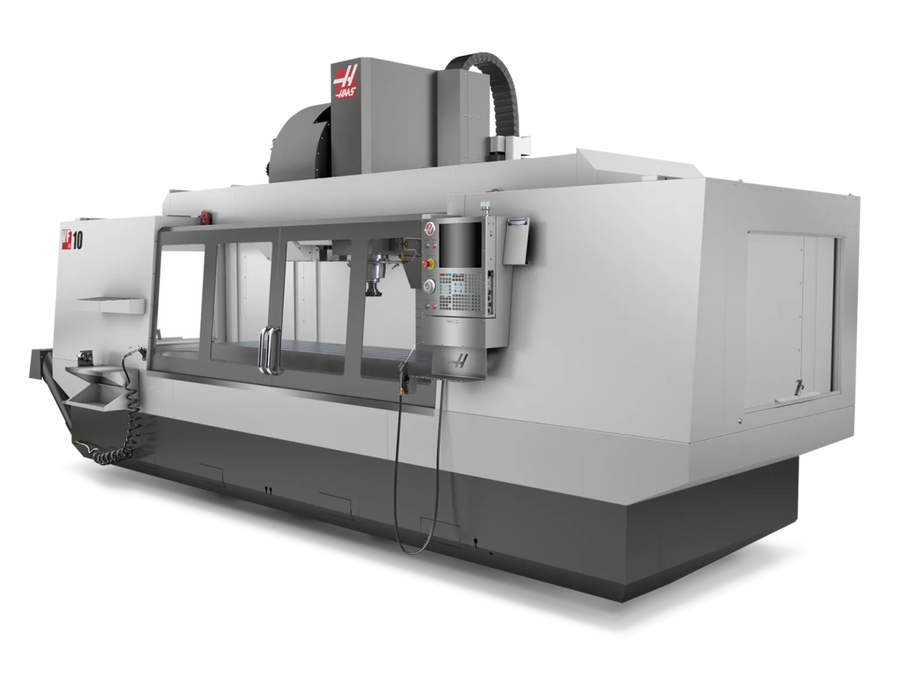

The Haas VF-10/50 is a large-format 50-taper VMC with a 50 HP spindle and 100" x 40" work envelope. Designed for large aerospace frames and heavy structural components.
What Phase Converter Does the Haas VF-10/50 Need?
CNC machines are "hard loads" requiring a converter sized at 2× the spindle HP. The Haas VF-10/50 has a 50 HP spindle, so:
- Calculation: 50 HP × 2.0 = 100 HP minimum
- Recommended: GP100NL — 100 HP Rotary Phase Converter
Undersizing causes voltage sag, spindle faults, and nuisance tripping. The 100 HP gives you the startup torque Haas equipment demands. Questions? Call (800) 417-6568 — free sizing help.
Haas VF-10/50 Specifications
| Model | Haas VF-10/50 |
| Spindle HP | 50 HP (max 60 HP) |
| Spindle Speed | 7,500 RPM |
| Recommended Converter | GP100NL — 100 HP |
Why GP100NL?
- Correctly sized for CNC hard-load startup inrush
- Balanced three-phase output — stable under full spindle load
- Auto-start NL series — no button, energizes with power
- Made in Phoenix, Arizona — lifetime warranty included
Ready to power your Haas CNC?
Free sizing help from engineers who know Haas machines. Lifetime warranty. Made in Phoenix, AZ.
Shop Phase Converters →Related Resources
Frequently Asked Questions
Can I run my Haas CNC on a rotary phase converter?
Yes — Haas machines run on phase converters every day in shops across the country. The key is correct sizing using the 2x multiplier on spindle HP. Do not undersize.
Will a phase converter damage my Haas control?
No — a properly sized and balanced Phoenix Phase Converter delivers true three-phase power that is functionally identical to utility three-phase. Haas's internal servo drives and spindle VFD operate normally.
What voltage does my Haas need?
Most Haas VMCs are configured for either 230V or 460V three-phase. Check your machine's main disconnect label or electrical panel inside the cabinet. Phoenix NL/PL Series covers 230V output. NH/PH Series covers 460V. Call us if you need help confirming your machine's voltage.
Do I need to do anything special with my Haas when using a phase converter?
No special Haas configuration is needed. Power your converter first, wait 3–5 seconds for the idler to reach speed, then power on your Haas machine normally via the main disconnect. The Haas control will boot and operate as normal.
What size breaker do I need for the phase converter?
Your single-phase input breaker should be sized at approximately 2x your equipment's three-phase full-load amps (FLA). For specific wire and breaker sizing, call (800) 417-6568 with your machine's FLA from the nameplate.
Will the phase converter affect Haas's rigid tapping or high-speed machining?
A correctly sized, balanced phase converter does not affect rigid tapping, high-speed machining, or any other Haas function. Voltage imbalance (from an undersized converter) can cause issues — which is why correct sizing is non-negotiable.
