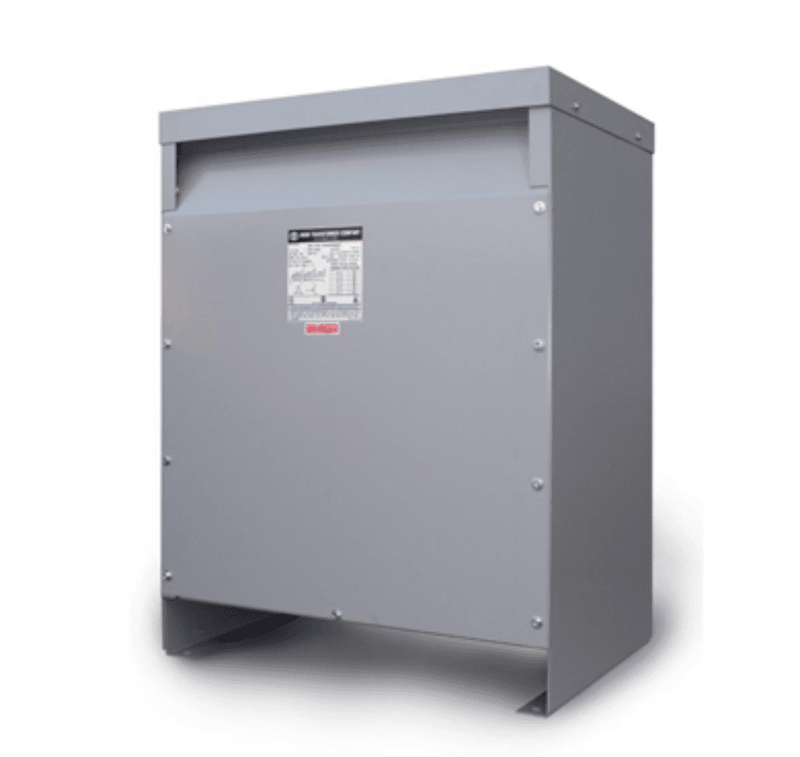

This 112.5 KVA three-phase transformer steps down 480V Delta to 208Y/120V — the most common voltage conversion for commercial and industrial facilities. Whether you're feeding 208V three-phase equipment from a 480V service or providing 120V single-phase branch circuits, this dry-type transformer handles it with continuous-duty reliability.
| KVA Rating | 112.5 KVA |
| Primary Voltage | 480V 3-Phase Delta |
| Secondary Voltage | 208Y/120V 3-Phase |
| Frequency | 60 Hz |
| Type | Dry-Type, Indoor/Outdoor |
| Primary Amps (approx) | 135A |
| Secondary Amps (approx) | 312A |
| Temperature Rise | 150°C |
| Insulation Class | Class H (180°C) |
| Sound Level | ≤ 45 dB |
📦 What's Included
- ✅ 112.5 KVA Dry-Type Transformer (480V to 208Y/120V)
- ✅ NEMA 3R Enclosure (indoor/outdoor rated)
- ✅ Wall-Mount Brackets
- ✅ Primary & Secondary Terminal Connections
- ✅ Documentation & Wiring Instructions
Why This Transformer
Converts 480V three-phase Delta to 208Y/120V — providing both 208V three-phase and 120V single-phase from a single transformer.
Built for 24/7 industrial operation. Class H insulation handles high ambient temperatures without derating.
Meets all applicable UL and CSA standards for safety and performance. Passes inspection without questions.
Sound level at or below 45 dB — quieter than a normal conversation. Install near work areas without noise complaints.
🏗️ Common Applications
Need help sizing a transformer? Our engineers will match the right KVA to your load.
This 112.5 KVA dry-type transformer converts 480V three-phase Delta power to 208Y/120V, providing both three-phase 208V and single-phase 120V outputs from a single unit. It's the standard voltage conversion for commercial buildings, industrial facilities, and machine shops that receive 480V service but need 208/120V for equipment, lighting, and receptacles.
Dry-type transformers require no oil filling or maintenance — just install, wire, and forget. The NEMA 3R enclosure allows indoor or outdoor installation. Whether you're building out a new shop or adding capacity to an existing facility, this transformer delivers reliable voltage conversion for the long haul.
Not sure what KVA rating you need? Call (800) 417-6568 — our team will calculate the right transformer size based on your panel schedule and connected loads.
