$2,724.75 $2,386.00
If any component is found to be defective within the warrantyperiod, Phoenix Phase Converters will either repair or replace it (atour discretion) at no cost. Warranty services for the control panelmust be conducted exclusively at a Phoenix Phase Convertersauthorized facility. Click below to read more.
At Phoenix Phase Converters, we strive to ensure your completesatisfaction with our products. If for any reason you need to return a product, please review our return policy belowReturn Eligibility:- Only sealed, unopened packages are eligible for return.- Returns must be initiated within 90 days from the date of purchase. Click below to read more.
LOAD TYPE | |
---|---|
EASY LOAD | 15 HP Drill Press, Milling Machine, Saw Motors. |
MEDIUM LOAD | 15 HP Mixer, Disc Sander, Band Saw, Meat Grinder, Compactor, Hoist |
HARD LOAD | 10 HP Lathe, Wide Belt Sander, Brake, Shear, Hoist, Hydraulic Pump, Pumps, Granite Saw |
VERY HARD | 7.5 HP Air Compressor, Blower, Vacuums, Cryo Chamber |
CNC SPINDLE | 10 HP Spindle Motor and other small motors on the CNC Equipment |
RESISTIVE LOAD | 25 AMPS, Ovens, Welders, Battery chargers, Transmitters |
A/C - FREEZERS | 7.5 HP or 127 Locked Rotor Amps (LRA) |
Understanding Load Types for Equipment:
Simplifying with CategoriesWhen it comes to powering equipment, understanding the type of load it presents is crucial for selecting the right phase converter, ensuring efficiency, and prolonging the life of both the converter and the machinery. Load types can vary widely, from simple tools to complex industrial machines, each with its own starting and running power requirements. To simplify this, we categorize loads into five main types: Easy Loads, Medium Loads, Hard Loads, Very Hard Loads, and Resistive Loads. These categories help in determining the right phase converter size, particularly important when considering a Rotary Phase Converter for your machinery.
When it comes to powering equipment, understanding the type of load it presents is crucial for selecting the right phase converter, ensuring efficiency, and prolonging the life of both the converter and the machinery. Load types can vary widely, from simple tools to complex industrial machines, each with its own starting and running power requirements. To simplify this, we categorize loads into five main types: Easy Loads, Medium Loads, Hard Loads, Very Hard Loads, and Resistive Loads. These categories help in determining the right phase converter size, particularly important when considering a Rotary Phase Converter for your machinery
Medium Loads require a bit more energy to start compared to Easy Loads but still don't represent the highest demand on a phase converter. This category can include machines like lathes, which have some resistance due to their construction and the materials they work with, but once moving, they operate smoothly without excessive power demands.
Hard Loads start to introduce a significant demand on the phase converter, requiring more power for startup due to higher inertia or resistance. Equipment such as air compressors fall into this category. They need a substantial amount of power to overcome the initial resistance and get the compressor moving.
Very Hard Loads are among the most demanding on a phase converter, requiring a lot of power for both startup and continuous operation. An example of a Very Hard Load is a dust collector. These machines have a high startup inertia because they need to move a large volume of air from a standstill, which requires considerable energy.Resistive Loads
Resistive Loads are a bit different from the other categories as they refer to loads that primarily use electrical resistance to operate, such as heaters and some types of lighting. These loads typically do not have moving parts and therefore do not have the startup inertia associated with mechanical equipment. However, they can still require significant power for operation.
Selecting a Rotary Phase Converter:
To demonstrate how load types affect the choice of a phase converter, consider a 20 HP (Horsepower) Rotary Phase Converter. This size is capable of handling a variety of loads, but the specific capacity depends on the load type.
When selecting a phase converter, it's important to consider not just the horsepower rating but also the type of load it will be supporting. The right phase converter will ensure that your equipment runs efficiently, with minimal wear and tear on both the converter and the machinery.
Conclusion
Understanding the different load types and categorizing your equipment accordingly is vital for selecting the appropriate phase converter. This knowledge helps in optimizing the performance of your machinery, ensuring efficient operation, and extending the lifespan of your equipment. Whether you're running a simple drill press or a heavy-duty dust collector, knowing the load type is the first step in powering your equipment effectively.
General Specifications | Single Phase Specs | Three phase Specs | Options | ||||
---|---|---|---|---|---|---|---|
HP | 20 | Voltage Input | 230 VAC | Voltage Output | 230 VAC | Start and StopW/ Built-In Contactor | No, add-on available |
KW | 14.9 | Motor Load Breaker Minimum Size | 40 | Maximum Output Inductive Load Amps | 54 | Voltmeter Display | YES |
KVA | 17.35 | Motor Load Breaker Maximum Size | 100 | Maximum Output Resistive Amps | 28 | AutoStart/AutoOff | No, add-on available |
HZ | 50/60 | Breakrer Type | Motor Load | Voltage Balancing | +/- 2% | Wireless Remote ON/OFF | No, add-on available |
Panel Enclosure | NEMA4 Indoor/Outdoor Hinged | Single Phase Line Input Wire Size | 4 | Minimum Wire Size Idler/Generator | 6 | GPX Energy Monitor Cloud System ON/OFF and Times | No, add-on available |
Motor | Cast Iron TEFC | Start and Stop W/ Built-In Contactor | No | Largest Spindle Motor Start | 10 | ||
Frame | 256T | Largest Compressor Motor Start | 7.5 | ||||
Idler Weight | 330.75 | Total Combined Horsepower Run | 20 | ||||
Electrical Panel Weight | 37 lbs | ||||||
Enclosure Certifications | UL 508A (CSA C22.2No. 14-13.), TUV, CE | ||||||
Panel Color | Gray White(RAL7035) | ||||||
Panel Dimensions | 20 x 12 x 10 | ||||||
Motor Dimensions | 12 x 12 x 20 |

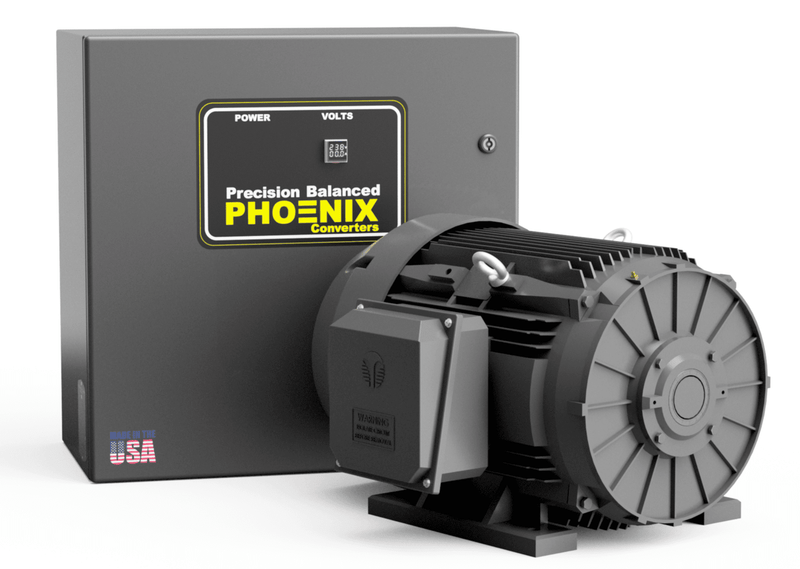

At Phoenix Phase Converters we use the best components that last a lifetime. The 20 HP rotary phase converter - It is sealed from any outside environment and is made to be used in a metal shop, woodshop, and outdoors. In addition, the phase converter is designed to be utilized in cold or hot weather. An intuitive standard voltage meter display to monitor your generated phase.The rotary phase converter is engineered with a NEMA 4 enclosure to ensure it is durable in a variety of commercial environments.
Standard Feature - TEFC (Toatlly Enclosed Fan Cooled Generator and Cast Iron Frame.
Our Highly Reliable Motors. At Phoenix Phase Converters we use the best components that last a lifetime. The 20 HP rotary phase converter - GP20NL single phase to three phase converter features a totally enclosed fan cooled and cast iron frame motor. It is sealed from any outside environment and is made to be used in a metal shop, woodshop, and outdoors. In addition, the phase converter is designed to be utilized in cold or hot weather. Watch this video to learn more. (video link)
- Wireless Remotes
- Start and Stop Button with built-in Contactor
- Programmable Timer ON/OFF
- Load Detection OFF
- Load Detection Auto Start and OFF
- AutoLink Box to Transformer 460 Volts
- AutoLink Box to Pair to another Phase Converter
- Wifi or Cloud-Based Energy Phase Meter Includes Timer, Cloud-Base ON/OFF, Voltage Meter, KW per hour, and Cost. Starts at 20 HP and above sizes.
We have 12 warehouses across the USA, so you can get it FAST! Phoenix Phase Converters can get your phase converter from one of our warehouses to your door, residential or business address as fast as Next Day in most cases!
We guarantee here at Phoenix Phase Converters, you will always talk to a highly experience sales and tech support customer care, we are always available, and can answer any questions for you any time of the day or week.
Two generations of hands-on experience. The 20 HP rotary phase converter - GP20NL features oversized components, cast iron frames, and totally enclosed fan cooled idler/generators. Built from years of customer real-world experiences, to last a lifetime of a maintenance free phase converter.
Phase Converter will Automatically Start when a load is detected, Factory Settings is set to 20 minutes after to shut down by itself when the load is gone, this works great for CNC machines, Air Compressor, A/C units, irrigation, and pumps, ect.
GPX Series will allow for you to have total control of the phase converter with built in timers to turn the phase converter on and off with a 7 day scheduling, and 24 hour time setting. Also with a built-in energy monitor for the converter and everything connected to it. You can even control and monitor it from any device connected to the internet from anywhere in the world.
Single Phase 230 Volts input with 230 volts and 460 volts output, some equipment are only set to run on 460 volts 3 phase, while other machines can run on 230 volts 3 phase. this will allow you to use both even at the same time. 208 volt output also available. Ask about our LinkBox.
Click here to download the DataSheets
Model | Easy | Medium | Hard | Very Hard | Resistive Amps | KVA | CNC Spindle Motor | Price |
---|---|---|---|---|---|---|---|---|
GP3 | 2.5 | 2 | 1.5 | 1 | 4 | 1.6 | 1.5 | $624.36 |
GP5 | 3 | 3 | 2 | 1.5 | 7 | 2.9 | 2.5 | 789.51 |
GP7 | 7 | 5 | 3 | 2.5 | 11 | 4.5 | 3.5 | 1085.00 |
GP10 | 8 | 5 | 5 | 3 | 15 | 6 | 5 | 1599.18 |
GP15 | 10 | 8 | 7.5 | 5 | 20 | 8 | 7.5 | 2057.23 |
GP20 | 15 | 12 | 10 | 7.5 | 25 | 11 | 10 | 2647.18 |
GP25 | 20 | 15 | 12 | 10 | 30 | 13 | 10 | 2963.43 |
GP30 | 25 | 20 | 15 | 10 | 37 | 15 | 15 | 3481.17 |
GP40 | 30 | 25 | 20 | 15 | 50 | 21 | 20 | 4210.30 |
GP50 | 40 | 30 | 25 | 20 | 61 | 25 | 25 | 5485.79 |
GP60 | 50 | 40 | 30 | 25 | 72 | 30 | 30 | 6883.34 |
GP75 | 60 | 50 | 40 | 30 | 100 | 29.6 | 35 | 8074.28 |
GP100 | 75 | 60 | 50 | 40 | 122 | 37.3 | 50 | 10465.37 |
GP120 | 100 | 75 | 60 | 50 | 148 | 60 | 60 | 13254.34 |
GP150 | 125 | 100 | 70 | 60 | 162 | 72 | 70 | 16140.23 |
At Phoenix Phase Converters we use custom made components that last a lifetime. The 20 HP rotary phase converter - GP20NL single phase to three phase converter with an oversized distribution block (the Start and Stop button with built-in contactor is optional).
All Phoenix Phase Converter come with a NEMA 4 IP66 Enclosure, keep water, dust, oil out, works perfect for outdoors or indoors, especially great for wood working, metal working shops, or any dirty environments
See why TEFC vs ODP is better, the choice is easy.
